What is the working principle of a magnetic drive pump seal?

Hey there! As a supplier of various Pump Seal Types, I often get asked about the working principle of a magnetic drive pump seal. So, I thought I'd take the time to break it down for you in a way that's easy to understand.

First off, let's talk about what a magnetic drive pump is. It's a type of pump that uses magnetic fields to transfer power from the motor to the impeller without the need for a traditional shaft seal. This is a big deal because shaft seals can be a major source of leaks in pumps, which can lead to all sorts of problems, like environmental contamination, loss of product, and increased maintenance costs.

So, how does a magnetic drive pump seal work? Well, it all starts with the basic components of the pump. A magnetic drive pump typically consists of a motor, an outer magnet assembly, an inner magnet assembly, an impeller, and a containment shell.

The motor is the power source that drives the outer magnet assembly. The outer magnet assembly is connected to the motor shaft and rotates when the motor is running. This outer magnet assembly has a series of permanent magnets arranged in a specific pattern.

On the other side of the containment shell, there's the inner magnet assembly. The inner magnet assembly is connected to the impeller. The impeller is the part of the pump that actually moves the fluid. Just like the outer magnet assembly, the inner magnet assembly also has a series of permanent magnets arranged in a pattern that matches the outer magnet assembly.

The containment shell is a non - magnetic barrier that separates the inner and outer magnet assemblies. It's designed to prevent the fluid being pumped from leaking out of the pump. This shell is usually made of materials like stainless steel or plastic, depending on the type of fluid being pumped and the operating conditions.

Now, here's where the magic happens. When the motor rotates the outer magnet assembly, the magnetic fields generated by the outer magnets interact with the magnetic fields of the inner magnets. This interaction causes the inner magnet assembly, and thus the impeller, to rotate as well. Since there's no physical connection (like a shaft) passing through the containment shell, there's no need for a traditional shaft seal. This eliminates the risk of leaks at the shaft seal location.

One of the key advantages of magnetic drive pump seals is their ability to handle corrosive, toxic, or high - purity fluids. Because there are no seals that can wear out and leak, these pumps are ideal for applications where leakage is not an option. For example, in the chemical industry, where corrosive chemicals are being pumped, a magnetic drive pump can ensure that the chemicals stay inside the pump and don't pose a risk to the environment or the operators.

Another advantage is their low maintenance requirements. Without a shaft seal that needs to be regularly replaced or maintained, the overall maintenance cost of a magnetic drive pump is significantly reduced. This also means less downtime for the pump, which can increase productivity in industrial processes.

However, magnetic drive pumps also have some limitations. For instance, they are generally less efficient than pumps with traditional shaft seals. The magnetic coupling between the inner and outer magnet assemblies can cause some power losses, which means the pump may require more energy to operate. Also, magnetic drive pumps are more sensitive to overheating. If the pump runs dry or if the fluid being pumped has a high viscosity, it can cause the magnets to overheat, which can damage the pump.

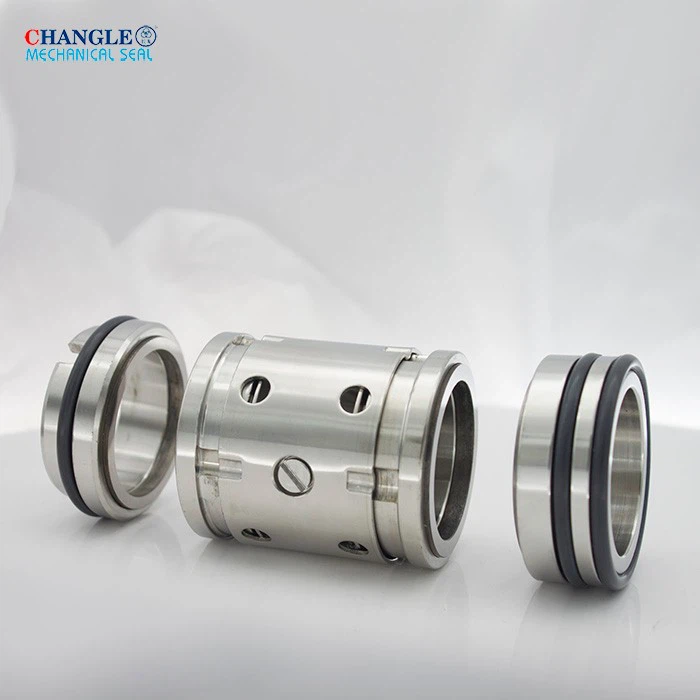

Now, as a supplier of Pump Seal Types, we offer a wide range of products to meet different needs. If you're interested in high - quality mechanical seals, you can check out our Fluiten Mechanical Seal. It's designed to provide reliable sealing performance in various pump applications. We also have the Din 24960, which is a popular choice for many industrial pumps. And for those looking for a durable and efficient seal, our Trisun Mechanical Seal is a great option.

If you're in the market for pump seals or have any questions about magnetic drive pump seals or other types of seals, don't hesitate to reach out. We're here to help you find the right seal for your specific application. Whether you're running a small - scale operation or a large industrial plant, we can provide the products and expertise you need.

In conclusion, magnetic drive pump seals are a unique and effective solution for many pumping applications. Their working principle based on magnetic coupling offers a leak - free and low - maintenance alternative to traditional shaft seals. But it's important to understand their advantages and limitations to make the right choice for your needs.

References

• "Pump Handbook" by Igor J. Karassik et al.
• Technical papers on magnetic drive pumps from various pump manufacturers.
